It is possible to use the saddle level indicator switch anywhere when you purchase it from Moore Automation
Unlike any other level indicator switch, the Saddle Level Indicator Switch mounts directly to the PVC pipe used for the feed line. It is then wired to our feed line control units to take complete control of your feed line.

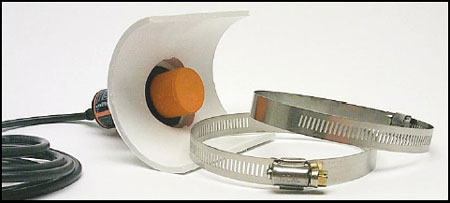

Easy mounting makes installation of Saddle Level Indicator switch simple
Two stainless steel clamps hold the sensor in place and will fit 3″ and greater diameter PVC pipe.
IP67 Rated Sensor
This sensor can be used without a protective enclosure. The sensor is totally water-tight.
Complete harness available with time delay in any combination of models for easy installation.
Complete harness available with time delay in any combination of models for easy installation.
Pricing
| Description | Part # | Price |
|---|---|---|
| Saddle with Tripleshield Watertight Sensor | 121 | $129 |
IP67 Rated Sensor
This sensor can be used without a protective enclosure
The sensor is totally water-tight. Our sensors are designed and produced with a focus
on the lifetime of the product. We don’t compromise on the quality.
- Sensors are activated when material comes within 1/2 inch of the sensor.
- Two wire controls – no heaters needed
- Wide temperature range -13 to 159 degrees F
- Adjustable sensitivity
